Nukeproof Reactor 290 Alloy

Nukeproof Reactor 290 Alloy

From concept through to design, the Kinematics, the geometry and specification; the Reactor is designed from the ground up to be the ultimate aggressive trail bike. It is at home on technical climbs, but happiest when thrashing the most technical trails you can point it at.

The Reactor frame is crafted from hydroformed triple butted 6061 aluminum. To reduce unsprung mass the seatstays on the Reactor are molded from carbon fibre. All frames are available for 27.5” or 29” wheel sizes. Each wheel size is based on two totally different, compromise free frames. Each were designed and developed at the same time and optimized around each wheel size.

Speed or play: which do you value more? The maneuverability of 27.5” or the raw speed of a 29”?

All Reactor frames feature a “flip chip” to adjust the geometry from “Trail” to “Rail mode”.

  • Trail – As the name suggests, this setting is best suited for trail riding. It is for riders who get as much enjoyment from the climb as the descents
  • Rail - The Rail setting turns the Reactor into a corner shredder, dropping the bottom bracket 6mm and slackening the head angle by half a degree. It is there to maximize the descending capabilities.

To ensure the bike could climb as well as it descends, we designed the 4 bar horst linkage to have higher levels of anti-squat for climbing gears but lower levels when you drop down the cassette. This means that the bike can behave itself on the climbs but when you get it up to speed, it turns into a trail hooligan. The combination of low anti-squat and progressive rate give ultimate small bump compliance (removes rough trail and root chatter) with good mid stroke support for cornering/pumping and end stroke progression for aggressive riding. Balanced anti-rise figures allow the Reactor some squat when braking hard, maintaining rider position and providing a good amount of pressure through the tyre to ensure traction. The Reactor is designed to reward the rider and ensure you get that stoke factor in on any ride.

Please Note: Due to severe delays in the bicycle supply chain, we have been forced to make some alterations to the specification of the component parts supplied with this bicycle. As a result the specification may differ from those shown in the images. Please refer to the specification table for accurate information.

Features

  • Aggressive Trail Bike
  • 130mm Rear Travel
  • 2 Position Trail/Rail Flip Chip, Swing link Driven 4 Bar Horst Link Suspension, with custom tuned shock.
  • 148mm Boost rear spacing
  • Sizes Available: Medium, Large, Extra Large

Images

Only 0 items in stock!
Regular price £3,799.99 GBP (SRP) Save Liquid error (snippets/bike-product-template line 139): Computation results in '-Infinity'% Find a Dealer
Nukeproof Reactor 290 Alloy
Nukeproof Reactor 290 Alloy
Nukeproof Reactor 290 Alloy
Nukeproof Reactor 290 Alloy
Nukeproof Reactor 290 Alloy
Nukeproof Reactor 290 Alloy
Find a Dealer

Full Specs

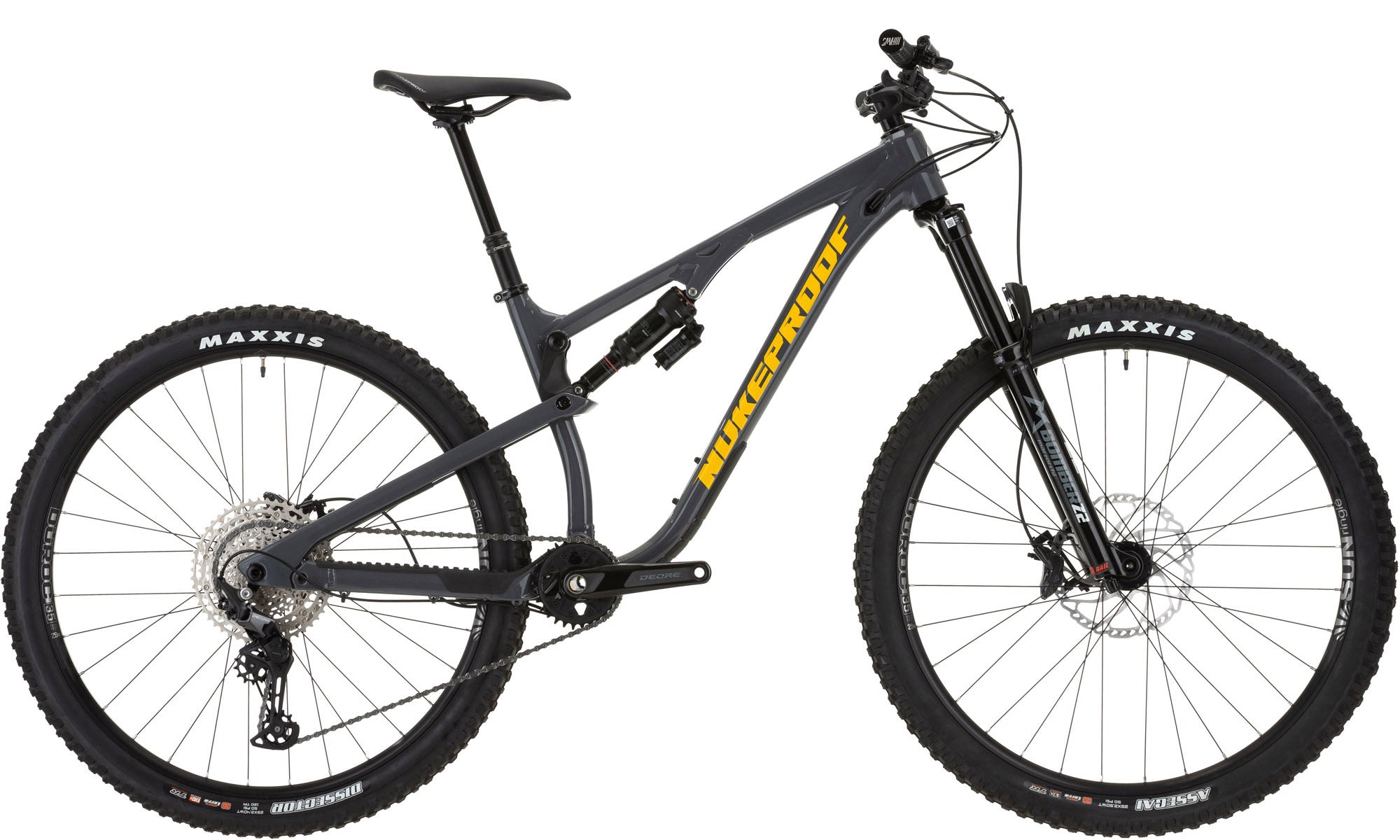

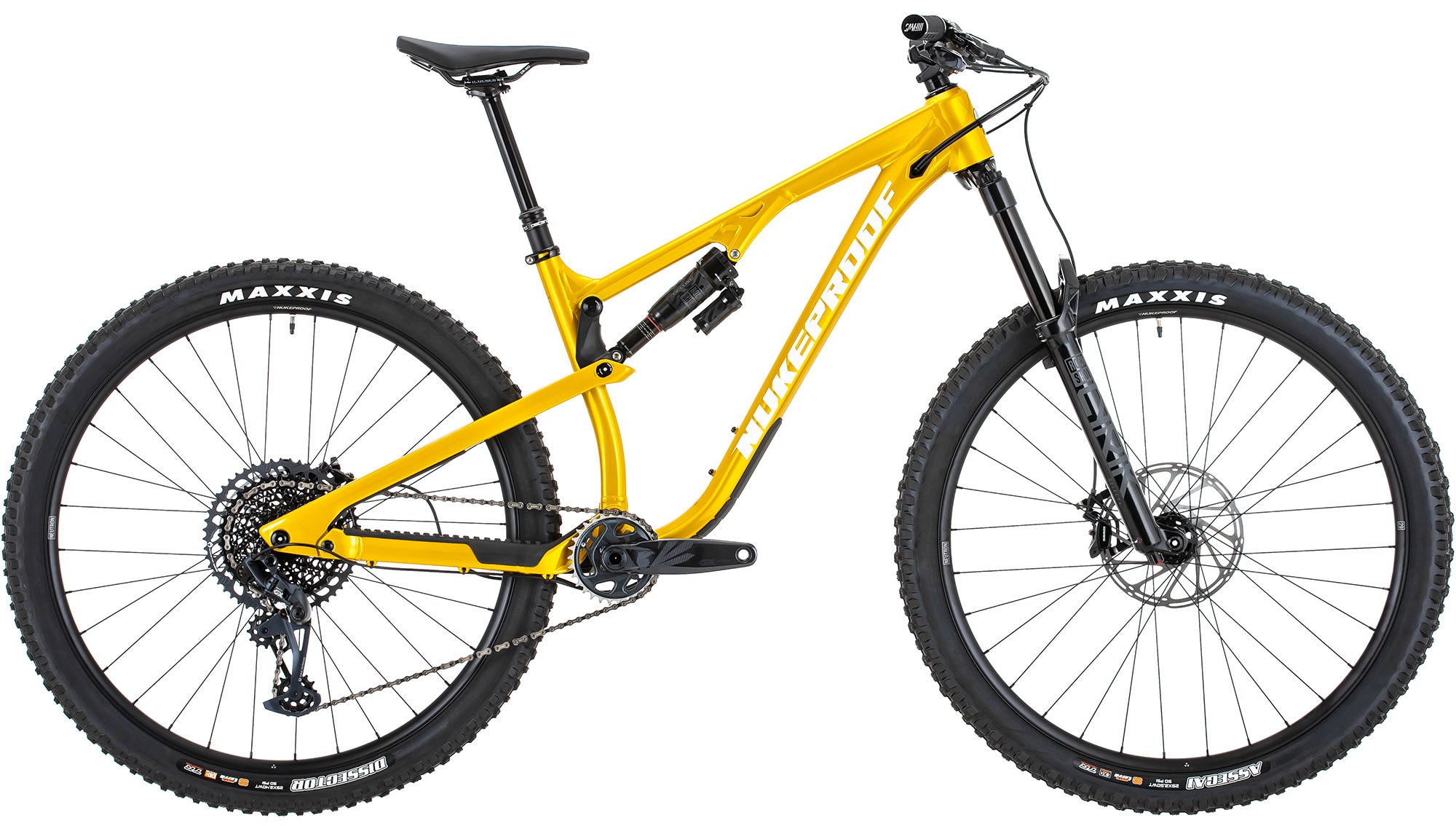

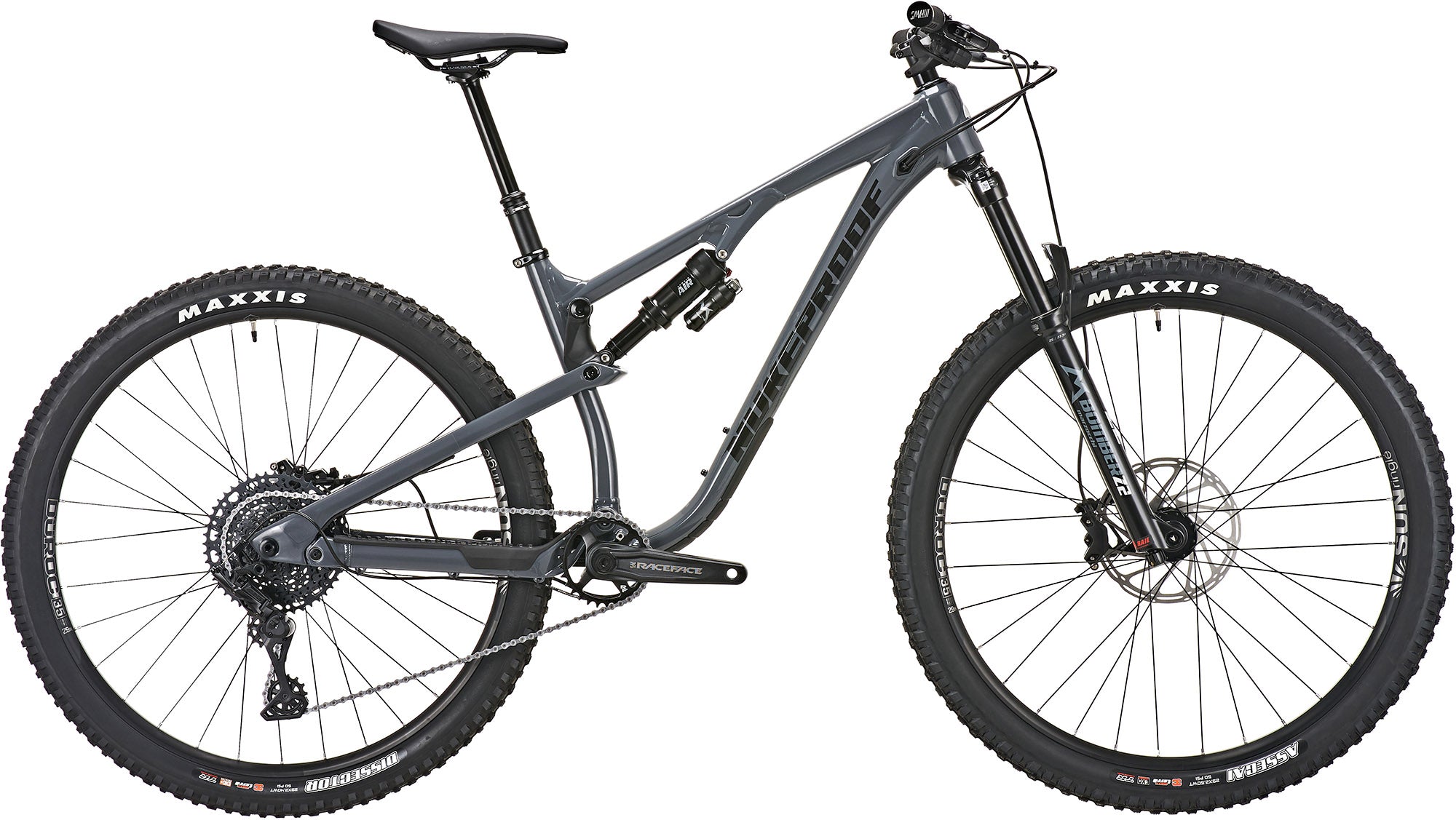

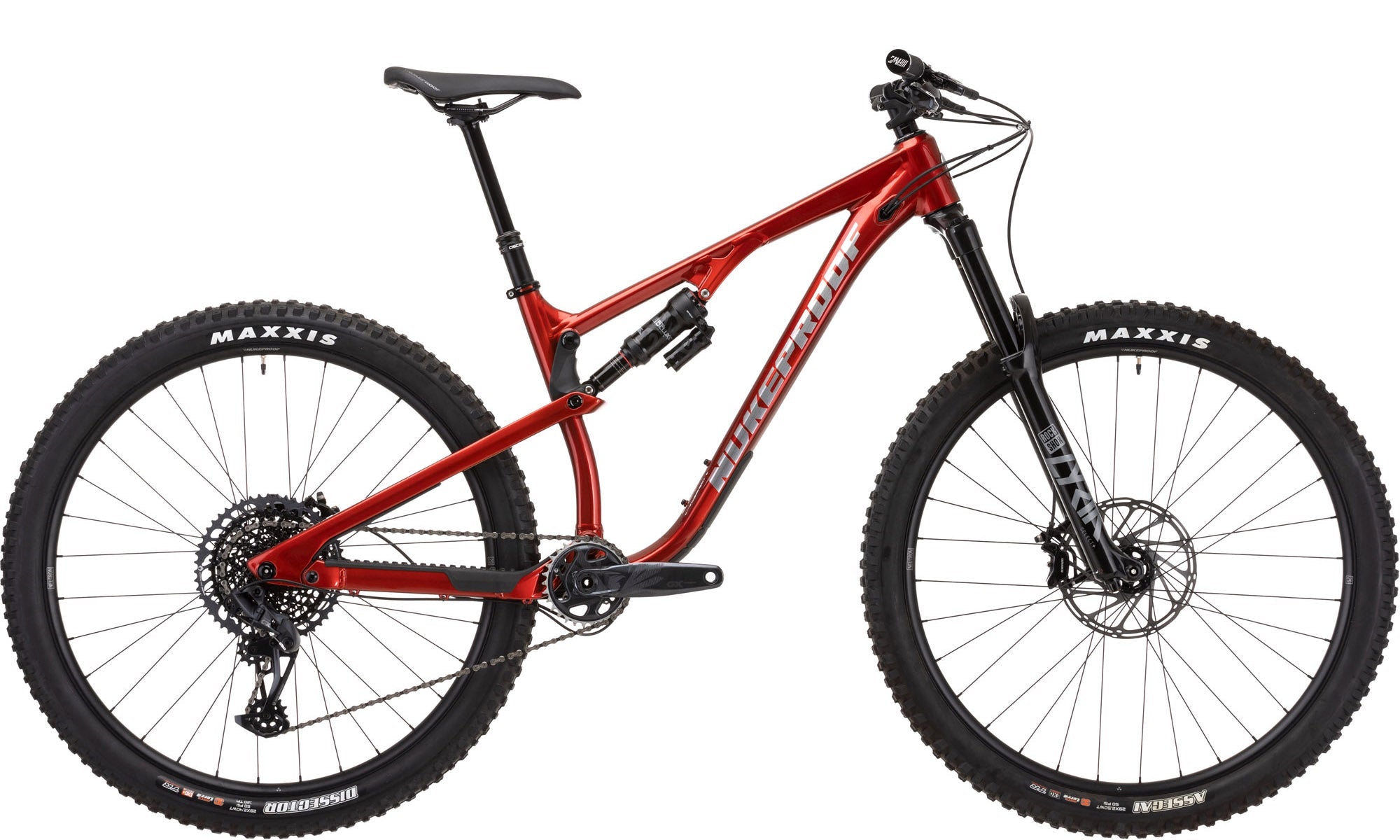

COMP - Bullet Grey COMP - Pencil Grey PRO - Rosso Red PRO - Turmeric Yellow Frame Only

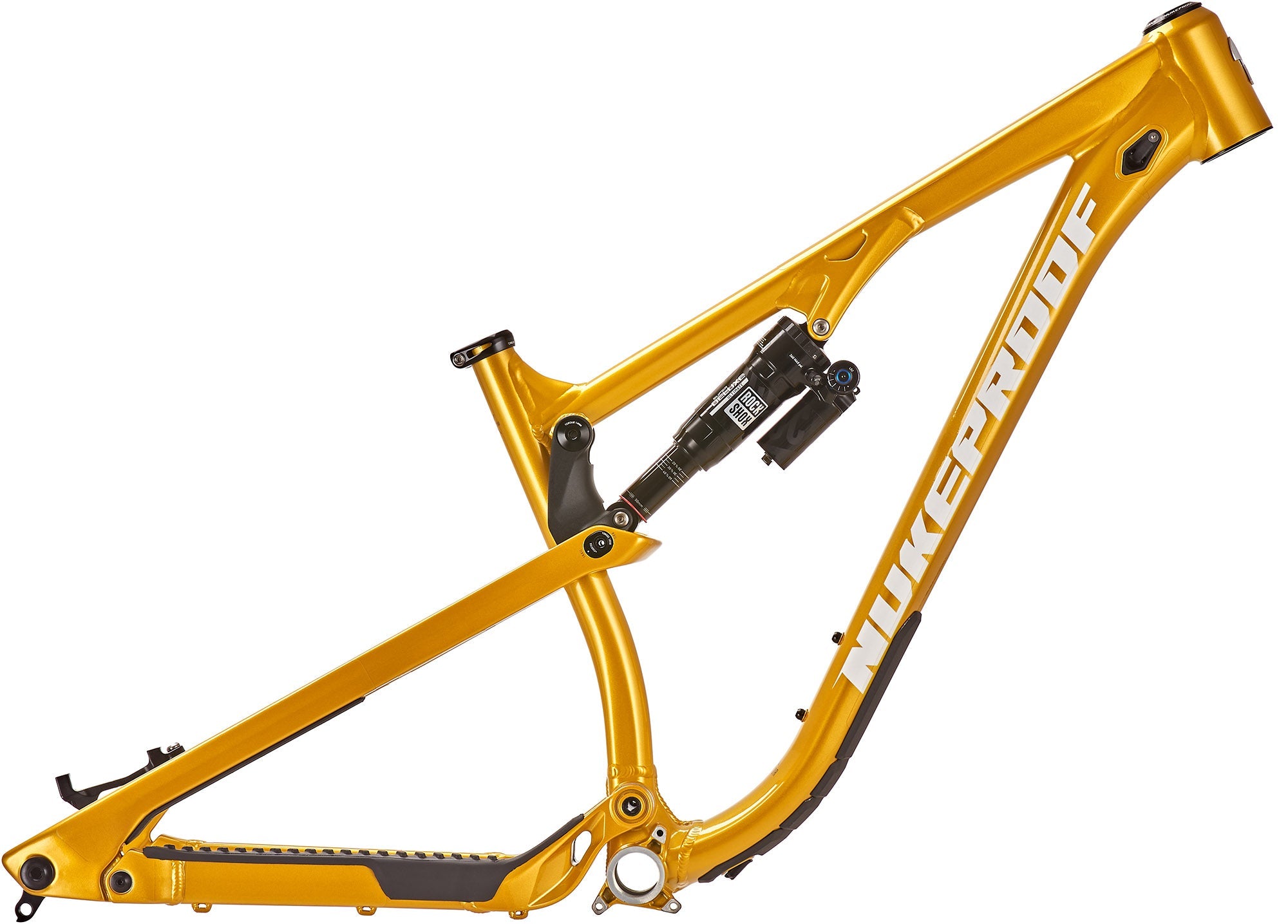

Frame Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, internal cable routing, ISCG 05 mount, Enduro bearings, threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, internal cable routing, ISCG 05 mount, Enduro bearings, threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, internal cable routing, ISCG 05 mount, Enduro bearings, threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, internal cable routing, ISCG 05 mount, Enduro bearings, threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, internal cable routing, ISCG 05 mount, Enduro bearings, threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection
Fork Marzocchi Bomber Z2, 150mm, 44mm Offset, BOOST, RAIL Damper, Gloss Black Marzocchi Bomber Z2, 150mm, 44mm Offset, BOOST, RAIL Damper, Gloss Black RockShox Lyrik Select + Charger 2.1 RC 150mm, 42mm Offset, BOOST, Debonair, Gloss Black RockShox Lyrik Select + Charger 3 RC2 150mm, 42mm Offset, BOOST, Debonair, Gloss Black
Shock RockShox Super Deluxe Select R, Custom Compression LIN, Rebound L 320 tune, 210x50mm, Bearing End, 1x bottomless token fitted. Marzocchi Bomber Air, Sweep-Adjust, Evolution LV, Custom Tune CM, RM, Rezi BVC002, 210x50mm, Bearing End. RockShox Super Deluxe Select+ RT, Custom Compression LIN, Rebound L 320 tune, 210x50mm, Bearing End, 1x bottomless token fitted. RockShox Super Deluxe Select+, Custom Tune, - 210x50mm, Bearing End, 1x bottomless token fitted. RockShox Super Deluxe Ultimate RCT, Custom, M - 0L1 LNL1 32SB C C1, L/XL - 0L1 LNL 32SB C C1 tune, 210x50mm, Bearing End, 1x bottomless token fitted.
Front Wheel Sun-Ringle Duroc 35 Comp 29"", 15x110mm Sun-Ringle Duroc 35 Comp, 29"", 15x110mm Nukeproof Neutron V2 29"", Tubeless Ready, 32h, 110x15mm Nukeproof Neutron V2 29"", Tubeless Ready, 32h, 110x15mm
Rear Wheel Sun-Ringle Duroc 35 Comp 29"", Shimano Microspline Driver, 148x12mm Sun-Ringle Duroc 35 Comp, 29"", HG Freehub, 148x12mm Nukeproof Neutron V2 29"", Tubeless Ready, 32h, SRAM XD Driver with 36 points of engagement, 148x12mm Nukeproof Neutron V2 29"", Tubeless Ready, 32h, SRAM XD Driver with 36 points of engagement, 148x12mm
Tyres Front: Maxxis Assegai 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector 29”x2.4 WT 3C MaxxTerra/EXO+/TR Front: Maxxis Assegai, 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector, 29”x2.4 WT 3C MaxxTerra/EXO+/TR Front: Maxxis Assegai 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector 29”x2.4 WT 3C MaxxTerra/EXO+/TR Front: Maxxis Assegai 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector 29”x2.4 WT 3C MaxxTerra/EXO+/TR
Crankset Race Face Ride, 12 Speed Crank, 170mm, 30T, 52mm Chainline Race Face Ride, 12 Speed Crank, 170mm, 30T, 52mm Chainline SRAM GX Eagle 12-Speed, 170mm, 30T, B148, DUB SRAM GX Eagle 12-Speed, 170mm, 30T, B148, DUB
Shifter Shimano Deore M6100-IR, 12-speed Rapidfire Plus, I-Spec EV Microshift Advent-X, SL-M9605-R, 10-Speed SRAM GX Eagle 12-Speed SRAM GX Eagle 12-Speed
Rear Deraileur Shimano Deore M6100, SGS 12-Speed, Shadow Plus Microshift Advent-X, RD-M6205, 10-Speed SRAM GX Eagle 12-Speed SRAM GX Eagle 12-Speed
Chain Shimano Deore M6100 12-Speed KMC X10, 10-Speed, with Quick Link SRAM GX Eagle 12-Speed SRAM GX Eagle 12-Speed
Cassette Shimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T Microshift Advent-X, CS-G104, 10-Speed, 11-48T SRAM GX Eagle 12-Speed, CS XG1275 EAGLE 10-52T SRAM GX Eagle 12-Speed, CS XG1275 EAGLE 10-52T
Chain Guide N/A N/A N/A N/A
Brakes Shimano M6120 or SRAM DB8 SRAM DB8, 4-Pot SRAM Guide RE SRAM Guide RE
Front Rotor 203mm SRAM Centerline 200mm SRAM Centreline, 200mm SRAM Centreline, 200mm
Rear Rotor 180mm SRAM Centerline 180mm SRAM Centreline, 180mm SRAM Centreline, 180mm
Handlebars Nukeproof Neutron V2 25mm Rise, Width - M780mm, L800mm, XL800mm Nukeproof Neutron V2 25mm Rise, Width - M780mm, L800mm, XL800mm Nukeproof Horizon V2 25mm Rise, Width - M780mm, L800mm, XL800mm Nukeproof Horizon V2 25mm Rise, Width - M780mm, L800mm, XL800mm
Stem Nukeproof Neutron AM, 45mm, Black Nukeproof Neutron AM, 45mm, Black Nukeproof Neutron AM, 45mm, Black Nukeproof Neutron AM, 45mm, Black
Saddle Nukeproof Nukeproof Nukeproof Horizon Nukeproof
Seatpost Brand-X Ascend internal, 31.6mm, M:150mm drop; L:170mm Drop; XL:200mm drop Brand-X Ascend internal, 31.6mm, M:150mm drop; L:170mm Drop; XL:200mm drop Brand-X Ascend internal, 31.6mm, M:150mm drop; L: 170mm drop; XL:200mm drop Brand-X Ascend internal, 31.6mm, M:150mm drop; L: 170mm drop; XL:200mm drop
Headset Nukeproof, 44-56 IITS Nukeproof, 44-56 IITS Nukeproof, 44-56 IITS Nukeproof, 44-56 IITS Nukeproof, 44-56 IITS
Grips Nukeproof Sam Hill Signature Nukeproof Sam Hill Signature Nukeproof Sam Hill Signature Nukeproof Sam Hill Signature
Bearings Enduro Bearings Enduro Bearings Enduro Bearings Enduro Bearings Enduro Bearings
Weight: (Size Medium) 15Kgs Medium (Tubeless) TBC 14.73Kgs Medium (Tubeless) TBC 3.77Kgs/8.3lbs (Medium)

Geometry & Sizing



Reactor 290 140mm Fork (Alloy) Reactor 290 150mm Fork (Alloy)
Medium Large X-Large Medium Large X-Large
(A) Reach 451 480 514 446.3 475.4 509.5
(B) Stack 615 620 625 618.4 623.5 628.7
(C) Effective Top Tube Length 610 640 675 611.4 641.2 676.3
(D) Seattube Length 420 458 508 420 458 508
(E) Effective Seattube Angle 75.5°
(Low 75°)
75.5°
(Low 75°)
75.5°
(Low 75°)
75.1°
(Low 74.6°)
75.1°
(Low 74.6°)
75.1°
(Low 74.6°)
(F) Seattube Angle (Actual) 71°
(Low 70.5°)
71°
(Low 70.5°)
71°
(Low 70.5°)
70.6°
(Low 70.1°)
70.6°
(Low 70.1°)
70.6°
(Low 70.1°)
(G) Saddle Height at Saddle Offset
(H) Saddle Offset at Saddle Height
(I) Headtube Length 105 110 115 105 110 115
(J) Headtube Angle 66°
(Low 65.5)
66°
(Low 65.5)
66°
(Low 65.5)
65.5°
(Low 65)
65.5°
(Low 65)
65.5°
(Low 65)
(K) Chainstay Length 440 440 440 440 440 440
(L) Front Centre 762.5 792 830 766.5 796 834
(M) Wheelbase 1205 1235 1271 1209 1239.1 1275.1
(N) Bottom Bracket Drop -33
(Low -39)
-33
(Low -39)
-33
(Low -39)
-30
(Low -36)
-30
(Low -36)
-30
(Low -36)
(O) Bottom Bracket Height 336
(Low 330)
336
(Low 330)
336
(Low 330)
339
(Low 333)
339
(Low 333)
339
(Low 333)
(P) Stand Over Height 736 (High) 744 (High) 769 (High) 739 (High) 747 (High) 772 (High)
(Q) Fork Travel 150 150 150 160 160 160
(R) Trail
(S) Fork Offset 44 44 44 44 44 44
(T) Axle to Crown  554 554 554 564 564 564
(U) Maximum Seatpost Insert 215 250 300 215 250 300

*All dimensions in mm unless otherwise stated

Recommended Sizing

Help

  • FAQs
  • Frame Spec
  • Industry Reviews
  • Tech Docs
  • Where can I buy Nukeproof Bikes?
  • Nukeproof bikes, components and apparel is sold through an authorised dealer network. Check out our dealer locator for your local local stockist or preferred online store www.nukeproof.com/dealers.
  • Do your bikes come with Warranty?
  • All Reactor frames come with a 5 year frame warranty (Please visit www.nukeproof.com/warranty for full info). Components will follow the component manufacturer warranty policy. Our Warranty policy applies to the original owner and processed by our authorised retail partners. To see their warranty process check: www.nukeproof.com/warranty
  • Where can I demo a Nukeproof bike?
  • We run numerous demo's through the year at major events and with our dealer network. Check out www.nukeproof.com/demo for when we may be near you. If this is unavailable to you, you can always request a demo through your local authorised stockist.
  • What size bike do I need?
  • All our products come with a size guide. This is designed as an indication of the size that may suit you. If you are still unsure speak with one of our dealers who will be happy to help you pick the right size and model for you.
  • How does you bike range work?
  • Our range is named based on specification level. Not every Bike Frame will have each specification level, but in order of price they run: Sport - Race - Comp - Pro - Elite- Factory/ST (Reactor Only) - RS
  • Where can I buy touch up paint for my bike?
  • Nukeproof have partnered up with paint specialist G-Paint to offer touch up paints for popular Nukeproof models. These can be bought direct from G-Paint's website HERE
Material: Hydroformed 6061 Triple-Butted Aluminium
Fork Travel: 140mm (RS 150mm)
Axle to Crown: 554mm (RS 564mm)
Fork Offset: 44mm
Rear Travel: 130mm
Wheels Size: 29"
Max Tyre Size: 2.6"
Recommended Shock Sag (Measured seated): 30%
Shock Size: 210x50mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Sizing: M/L/XL
Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 - T2 / ZS56/40 - B8
Bearings Required: 2x (6902 2RS), 4x (6800 2RS), 4x (6901 2RS)
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 34.9mm
BB: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: Sram Maxle Stealth M12x1.75 180mm (Thread Length 20mm)
Chain Guide: ISCG05
Max Chainring Size 34T/32T Oval
Brake Mount: 180mm Direct Post
Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS
